Chigayo chebhora chepuraneti chakatsetseka (Rudzi rwechiedza)
Applications

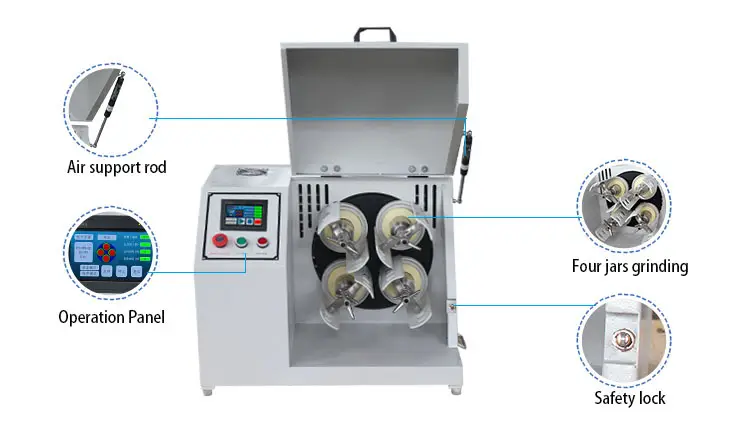

WXQM series planetary ball mill ine matangi mana ekukuya mabhora akaiswa
pa turntable imwe chete. Kana turntable ikatenderera, tangi rinoita kuti
mafambiro epasi uye mabhora ari mumatangi anokuya nekusanganisa mienzaniso
mukufamba nekumhanya kukuru. Chigadzirwa ichi chinogona kupwanya nekusanganisa zvigadzirwa zvakasiyana-siyana
zvemhando dzakasiyana uye granularity nenzira dzakaoma kana dzakanyorova.
huwandu hwezvigadzirwa zvakakuyiwa hunogona kuva hudiki kusvika 0.1 micron (kureva)
1.0×10-4mm).
Video
tsananguro
Chigayo cheWXQM chine matangi mana ekukuya ebhora akaiswa patable imwe chete. Kana turntable ichitenderera, tangi rinotenderera rinoita mafambiro epasi uye mabhora ari mumatangi anokuya nekusanganisa mienzaniso mukufamba kwekumhanya kukuru. Chigadzirwa ichi chinogona kupwanya nekusanganisa zvigadzirwa zvakasiyana-siyana zvezvinhu zvakasiyana uye granularity nenzira dzakaoma kana dzakanyorova. granularity shoma yezvigadzirwa zvakakuyiwa inogona kuva diki kusvika 0.1 micron (kureva) 1.0×10-4mm).
Working Principle
Planetary Ball Mill ine matangi mana ekukuya mabhora akaiswa pa turntable imwe chete. Kana turntable ikatenderera, tangi rinotenderera rinoita mafambiro epasi, mabhora nemasamples ari mukati mematangi anokanganiswa zvakanyanya mukufamba nekukurumidza, uye masamples anozopedzisira akuyiwa kuita upfu. Zvinhu zvakasiyana-siyana zvinogona kukuyiwa negayo nenzira yakaoma kana yakanyorova. Hupfu hwakakuyiwa hushoma hunogona kunge hudiki se 0.1μm.
Feature/Advantage
1. Kushanda kuri nyore.

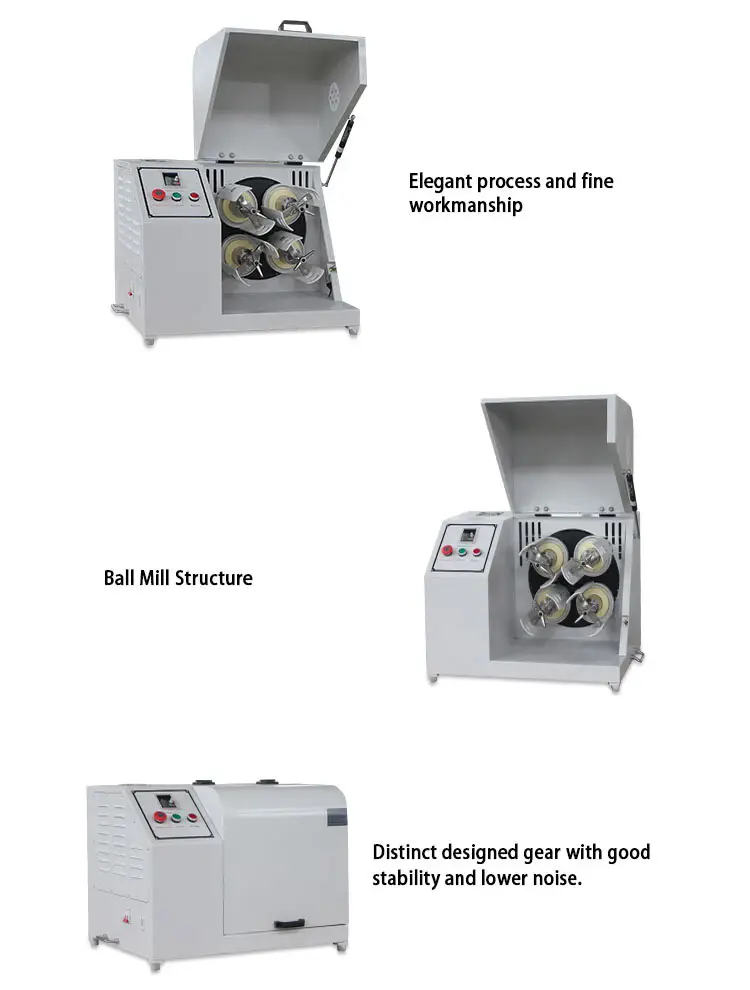

2. Giya rakasiyana rine ruzha rwakaderera.
3. Maumbirwo ehari yechigayo akatambanuka anoita kuti zvinhu zvisanyure pasi.
Mabhenefiti eLaboratory Horizontal Planetary Ball Mill
1. Kumhanya kwakagadzikana kwegear transmission kunoita kuti kuyedza kuenderane uye kudzokororwa.
2. Muchina unoshanda nepasi, une kumhanya kukuru, simba guru, kushanda zvakanaka, uye granularity diki.
3. Sampuli ina dzeupfu kubva pahukuru hwakasiyana nezvinhu zvakasiyana dzinogona kugadzirwa panguva imwe chete.
4. Muchina uyu unodzorwa ne frequency converter; unogona kusarudza kumhanya kwakakodzera kutenderera zvichienderana nemhedzisiro yekuedza inotarisirwa. Converter iyi ine mudziyo une under voltage uye over-current kudzivirira mota.
5. Chigayo chebhora chepuraneti chine mabasa ekudzima nguva, kuenderera mberi nenguva uye kutenderera uchitenderera. Unogona kusarudza zvakasununguka chero nzira dzekushanda dzekutungamira kune imwe nzira, kuchinjana, kutevedzana, uye nguva zvichienderana nezvinodiwa zvekuedza kuitira kuvandudza kushanda kwekugaya.
6. Hunhu hwehunyanzvi hweTencan Ball Mill: Pakati pesimba regiravhiti yakaderera, kushanda kwakasimba, chimiro chakabatana, kushanda kuri nyore, kuchengetedzeka kwakavimbika, ruzha rwakaderera, kurasikirwa kudiki.
7. Swichi yekuchengetedza inoiswa pamuchina kudzivirira tsaona dzekuchengetedza kana chifukidziro chekuchengetedza chikavhurwa muchina uchishanda.
Data Sheet
| Zvimiro zvehunyanzvi zveHorizontal Planetary Ball Mill | |
| Drive Mode | Kutyaira negiya uye bhandi |
| Mode Yekushandisa | Magaba maviri kana mana ekugaya anogona kushandiswa pakukuya kwega kwega |
| Kunonyanyisa Kuisa Kugona | Zvisingasviki 1/3 yehuwandu hwejagi rega rega Huwandu hwese hwemajagi: pasi pe 1/3 yehuwandu hwemajagi ese |
| Kudyisa Size | Zvinhu zvevhu ≤10mm, zvimwe zvinhu ≤3mm |
| Kuwanda Kwezvinobuda | Dukuduku rinosvika 0.1 μm |
| Kumhanya Kwekutenderera | 1/2 |
| Nguva Yakanyanya Kushanda Inoenderera Mberi | 72hours |
| Maitiro Ekusarudza Ekudzora Kumhanya | Kuchinja-chinja kwema frequency uye kudzora nguva otomatiki |
| Zvinhu zveChirongo | 304 Simbi isina chinhu, 316l simbi isina chinhu, Zirconia, Nayiloni, PU, Alumina ceramic (corundum), PTFE, Agate, Tungsten carbide |
Tafura 1 Magadzirirwo eUnyanzvi eLaboratory Horizontal Planetary Ball Mill
| Model No. | Magadzirirwo | Saizi Dzinoenderana yeMajagi eGuyo | Huwandu Hwakaenzana | Saizi Dzinoenderana majagi eVacuum Mill |
| WXQM-0.4 | 0.4L | 50ml, 100ml | 4 bv | 50ml |
| WXQM-1 | 1.0L | 50ml, 100ml, 250ml | 4 bv | 50ml. 100ml |
| WXQM-2 | 2.0L | 50ml-500ml | 4 bv | 50ml, 100ml, 250ml |
| WXQM-4 | 4.0L | 250ml-1000ml | 4 bv | 50ml-500ml |
| WXQM-6 | 6.0L | 1L-1.5L | 4 bv | 50ml-750ml |
Tafura 2 Magadzirirwo eUnyanzvi eLaboratory Horizontal Planetary Ball Mill
| Model No. | Voltage | simba | Kutenderera Yekukurumidza | ruzha |
| WXQM-0.4 | 220V-50Hz | 0.75KW | 70-670 RPM | Asingasviki 58db |
| WXQM-1 | 220V-50Hz | 0.75KW | 70-670 RPM | Asingasviki 60db |
| WXQM-2 | 220V-50Hz | 0.75KW | 70-670 RPM | Asingasviki 60db |
| WXQM-4 | 220V-50Hz | 0.75KW | 70-670 RPM | Asingasviki 60db |
| WXQM-6 | 220V-50Hz | 0.75KW | 70-670 RPM | Asingasviki 60db |
Tafura 3 Magadzirirwo eUnyanzvi eLaboratory Horizontal Planetary Ball Mill
| Model No. | Kumhanyisa Kudzora | Net Weight | Mitezo yeNet |
| WXQM-0.4 | Frequency Kudzora | 86kgs | 700 * 510 * 570mm |
| WXQM-1 | Frequency Kudzora | 86kgs | 700 * 510 * 570mm |
| WXQM-2 | Frequency Kudzora | 86kgs | 700 * 510 * 570mm |
| WXQM-4 | Frequency Kudzora | 86kgs | 700 * 510 * 570mm |
| WXQM-6 | Frequency Kudzora | 86kgs | 700 * 510 * 570mm |
